46.2 lbs (21kg)
High Grade Aluminum HE30
Jib Arm: 3.5mm
No
No
Black Powder Coated
13 Sections of jib arm
40' (12.19)
3' (0.91m)
Rock Solid Heavy duty Jib stand (HD-STD) made of solid aluminum is foundation of Jib Crane
Hub Assembly Material: High Grade aluminum HE30
U-Mount
Has double locking system (Aluminum knob and Steel Pin Lock system as well) fully extendable
Height:
Maximum: 4.6' (142.24cm)
Minimum: 3' (91.4cm)
Hub Assembly:
Diameter: 5.8" (148mm)
Thickness: 0.55" (14mm)
1323 lbs (600kg)
High Grade aluminum HE30
40'' (101.6cm)
16" (40.64cm)
Yes
10" (25.4cm)
2.45" (6.22cm)
High Grade Aluminium
Maximum: 33 lbs (15kg)
360 degrees
Panning/Rotation:
Minimum: 20 sec
Maximum: 5 sec
Tilting/Rotation:
Minimum: 1 min 33 sec
Maximum: 8 sec
Three high torque DC motors 12V that rotates (pans), tilts & roll the head 360 degrees
3- Silver Big Gears (Dia- 100mm)
2- Brass Small Gears (Dia- 14mm)
1- Brass Small Pan Gear (Dia-22mm)
Input: AC 100 - 240V
Output: DC 12V -2A
32' (10m)
6-Pin XLR
9.8' (3m)
12 x 3" (30.48 x 7.62cm)
Camera mount slot: 8" (20.32cm)
Minimum: 23.5" (59.69cm)
Maximum: 25" (63.5cm)
3-Axis head: 12.5 lbs (5.7kg)
Joystick box: 1.7 lbs (815g)
3-Axis
1x 4-Pin XLR male connectors
6 Pin XLR
Yes
Yes
687748967880

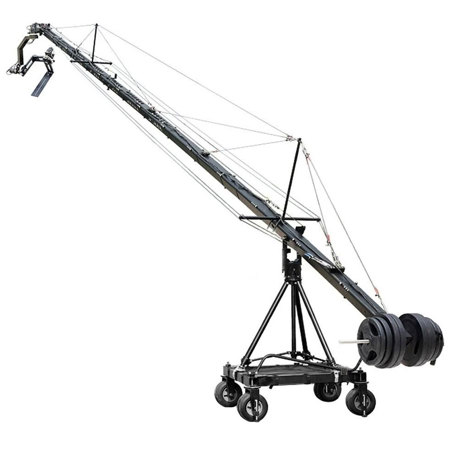

An innovative addition to the world of film production, the 40Ft Jumbo Film Jib Crane Package from Proaim is a comprehensive solution designed to elevate your production quality. This robust and sturdy camera crane is specifically engineered for heavy-duty setups and high-end productions, making it an ideal choice for professional filmmakers and photographers.
Constructed from high-intensity aluminum alloy, the triangular jib crane offers superior rigidity and strength. Each section of the crane fits securely into the next, fastened by a top screw for enhanced safety and stability. This design ensures a smooth and secure connection, providing a reliable platform for your camera equipment.
The package includes a Spin 3-axis motorized dutch roll pan tilt head, crafted from high-grade aluminum. This precision-designed head can accommodate filming cameras weighing up to 33lbs, offering a versatile solution for various filming needs. The color-coded cables facilitate quick installation, saving you valuable time on set.
The package also features a rugged, heavy-duty dolly for dynamic moving shots. This 8-wheeled dolly, constructed from solid aluminum, can bear a total weight of up to 1323lbs. It connects swiftly to the tripod and includes a steering system for complete directional control, as well as a rugged stopper for static positioning.
The heavy-duty jib stand, designed to carry the heaviest loads with ease, ensures a strong connection between the camera crane and tripod stand. It features extra solid knobs for secure locking, enhancing the overall stability of your setup.
The Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head is controlled by a joystick remote, operating on 12-volt power. It accepts external 12VDC battery power through an included 3-meter long 4pinXLR cable. The head is sheathed in plastic to protect the finish, and the built-in XLR cables in the motor ensure a clean and organized setup.
This modularly designed heavy-duty crane can be transformed into various sizes to adapt to different shooting situations. The package comes in a storage configuration for easy transportation, making it a practical choice for on-location shoots.
In conclusion, the 40Ft Jumbo Film Jib Crane Package from Proaim is a versatile, durable, and reliable solution for all your heavy-duty filming and photography needs.
