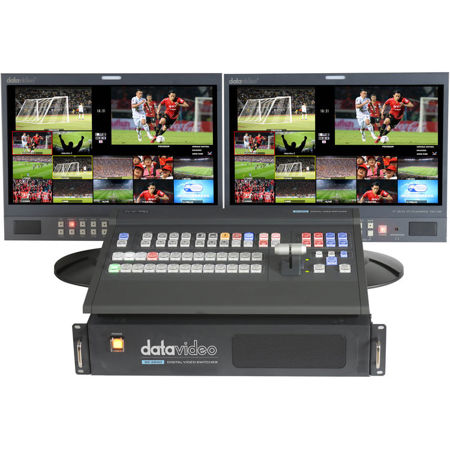

Datavideo SE-2850: Picture 1 thumbnail
See all Datavideo items

Datavideo SE-2850 HD/SD 12-Channel Digital Video Switcher

SKU: DVSE285012

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : are the monitors included?ANDREW R : What's in the box: Datavideo SE-2850 HD/SD 12-Channel Digital Video Switcher SE-2850 Control Board AD Switch DC 12V with AC Cord DB9P to DB9P Cable CB-41 / XLR to XLR Cable 2x Extra Button Cap for Wipe 12x Screw 2x 2U Ear Rack Datavideo 3 Year Warranty (1 Year + 2 Year Upon Registration)

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Datavideo SE-2850 Specifications

  • Total Video Inputs

    Total 12 CH inputs: 12 HD/SD SDI and 3 HDMI selectable

  • Total Outputs

    4x BNC output connectors for SDI Outputs, 2x HDMI for Multi-Screen (v1.3a)

  • HDMI Video Input

    3x HDMI (RGB/YUV)

  • Analog Audio Input

    4 Ch Balanced Audio

  • Analog Audio Output

    2 Ch Balanced Audio

  • Ref Input / Output

    1x BNC Ref in / 1 x BNC Ref out (loop-through)

  • Internal Frame Synchronizers

    12 All inputs

  • PGM Out

    SDI

  • Multi View Out

    In SD/HD mode; MV output by HDMI is 1920x1080i resolution

  • Output

    Program
    Preview
    Program without logo overlay
    Program without logo overlay and without subtitles.
    One of the input signals (AUX) (can be selected from any of the input sources)

  • Audio Indicators on Multiview

    Each Video input embedded Audio (2 Ch) + Preview (2 Ch)+ Program (4 Ch)

  • Tally Out

    D-Sub 25 PIN

  • GPI

    Two modes: Level /Pulse trigger selectable

  • Ethernet (RJ45)

    F/W Upgrade
    Still image upload
    Logo insertion
    Remote control

  • D-Sub 9 pin connector

    Keyboard Controller connection

  • Power Input

    12V DC

  • Operation Modes

    50 / 59.94 / 60 Hz - switchable via OSD MENU

  • Format Support

    Inputs:
    HD:
    1080p 25/29.97/30/50/59.94/60Hz
    1080I 50/59.94/60Hz
    720p 50/59.94/60Hz
    SD: 576i 50Hz, 480i 59.94Hz

    Outputs: 1080i 50/ 59.94/ 60Hz

  • Video Sampling

    4:2:2 10bit

  • Color Precision

    4:2:2 10bit

  • Color Space

    4:2:2 YUV

  • Aspect Converter

    Output SD 16:9 or 4:3

  • Digital Audio Resolution

    24 bit

  • Downstream Keyers

    2

  • Linear /Luma Keyers

    2

  • Pattern Generators

    Color BAR

  • Transition Effect

    Split / WIPE / MIX / FTB / CUT

  • Picture in Picture

    2, Shape, Border

  • Logo insertion

    2

  • Built-in title overlay system

    Yes

  • Dimensions

    Main Unit: 432.4 x 93 x 258.70mm (17.02 x 3.66 x 10.19")
    Control Unit: 432.60 x 313.30 x 400.50mm (17.03 x 12.33 x 15.77")

  • Weight

    Main Unit: 4.7kg (10.36 lbs)
    Control Unit: 2.5kg (5.51 lbs)

About Datavideo SE-2850

SE-2850 is a multi-definition switcher designed for productions requiring 12 channels of HD or SD inputs. Being one of Datavideo's most flexible switcher solutions, the SE-2850 is able to accept inputs in varying combinations of HD/SD SDI and HDMI. It is ready for every live production, giving producers the opportunity to output graphics with rich, visually appealing programming. The SE-2850's audio functionality allows it to connect an external mixer for a complete sound control. The SE-2850 also features all channel audio de-embedding and audio delay and 4 dedicated XLR inputs. As an integrated Multimedia mixer, the SE-2850 can switch between up to 12 audio sources.

In addition to producing superb 4:2:2 10 bit broadcast quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy-to-use effects, such as dual picture in picture (PIP), downstream keyer (DSK), logo insertion and built-in title overlay system for the entry level Datavideo CG systems.

Datavideo SE-2850 Features

  • Supports 12 HD or SD Inputs in a variety of configurations: HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI, SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI
  • 6 user-defined output options on 4 SDI output channels
  • User defined and positioned dual PIP
  • Two downstream keyers (DSK) with a setup choice of basic Luma key or alpha channel
  • Built-in title overlay system (TC-200) that works with entry level Datavideo CG systems
  • Two independent LOGOS
  • Frame Store (FS) source for each input channel
  • Real-time clock featuring HH:MM:SS on the multi-screen
  • Count down counter MM:SS
  • User defined wipe buttons - choice of 17 wipes with optional border
  • Support XPT cross point: XPT Video and XPT Audio
  • Audio delay for each de-embedded audio source
  • Two Audio output modes (Selectable on OSD): "External analog Audio" - output SDI embedded audio is two stereo pairs from 4 analog audio inputs, "Audio Pass Through"- output SDI embedded audio is internal digital stereo pair
  • Remote control over an Ethernet network using a supplied PC application running on Windows 7 Operating System or above
  • Separate, rack mountable processing unit
  • Two GPI modes: Level / Pulse trigger selectable

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly switch between 12 HD/SD SDI and 3 HDMI inputs with this video switcher.
  • Enjoy reliable connectivity with balanced audio I/O for pristine sound in live productions.
  • Simplify your workflow with user-friendly controls for real-time streaming and recording.
  • Versatile compatibility: Supports multiple formats, including 1080p and 720p for crisp video.
  • Create professional broadcasts with built-in title overlay and logo insertion features.
  • Durable build ensures this multimedia mixer stands up to the demands of live event production.

What's in the box:

  • Datavideo SE-2850 HD/SD 12-Channel Digital Video Switcher
  • SE-2850 Control Board
  • AD Switch DC 12V with AC Cord
  • DB9P to DB9P Cable
  • CB-41 / XLR to XLR Cable
  • 2x Extra Button Cap for Wipe
  • 12x Screw
  • 2x 2U Ear Rack
  • Datavideo 3 Year Warranty (1 Year + 2 Year with Registration)
