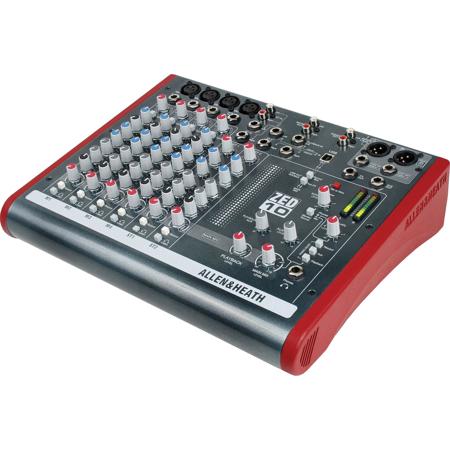

Allen & Heath ZED-10 Multi-Purpose Miniature Mixer, 4 Mic/Line Inputs, 2 Class A, 32/44.1/48kHz Sample Rate

SKU: AHZED10 MFR: AH-ZED10
Earn VIP Reward Points

Key Features

  • Allen & Heath ZED-10: Achieve pristine sound quality with low-noise circuitry for clear audio.
  • Four mic/line inputs on this miniature mixer offer flexible connectivity for various instruments.
  • Craft your perfect mix with precise EQ control, enhancing every input channel's sonic texture.
  • The built-in USB interface allows seamless recording and playback at up to 48kHz sample rate.
  • This durable recording mixer is perfect for home studios, podcasts, and small live performances.
  • Utilize class A preamps for warm, musical tones, ideal for guitars, vocals, and more.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Allen & Heath ZED-10 Specifications

  • Mono channel (XLR) Input

    -10 to -60dBu for nominal (+11dBu in max)

  • Mono channel Line Input (Jack socket)

    +10 to -40dBu (+31dBu maximum)

  • Stereo Input (Jack or phono sockets)

    0dBu nominal (control = Off to +15dB)

  • L/R Outputs ( XLR) Normal/DI out

    0dBu/-30dBu +21dBu/-9dBu maximum.

  • Aux & FX Outputs (Jack sockets)

    0dBu nominal. +21dBu maximum.

  • Record & Monitor Outputs

    0dBu nominal. +21dBu maximum.

  • Mic in to Mix L/R Out, 30dB gain

    +0.5/-1dB 10Hz to 30kHz.

  • Line in to Mix L/R out 0dB gain

    +0.5/-1dB 10Hz to 25kHz

  • Stereo in to Mix L/R out

    +0.5/-1dB 10Hz to 30kHz

  • Mic in to Mix L/R Out

    0.002%

  • Mic in to Mix L/R Out, 30dB gain 1kHz

    0.01%

  • Line in to Mix L/R out 0dBu 1kHz

    0.003%

  • Stereo in to Mix L/R out+10dBu 1kHz

    0.002%

  • Gtr Input to Mix L/R Out, Boost OUT

    0.015%

  • Gtr Input to Mix L/R Out, Boost IN

    2% Second Harmonic

  • Analogue Headroom from nominal (0Vu)

    21dB

  • USB in & out headroom from nominal

    14dB

  • USB Audio In/Out

    USB 1.1 compliant 16bit.

  • Sample Rate

    32, 44.1, or 48kHz

  • Mic Pre EIN at max gain

    150R input Z 22-22kHz: -127dBu

  • Mix L/R out

    L/R faders = 0, Levels min, 22-22kHz: -96dBu

  • Weight

    7lbs / 3.17kg

  • UPC Code

    6938122235236

About Allen & Heath ZED-10

The Allen & Heath ZED-10 Multi-Purpose Miniature Mixer is an amazing little desk for small band mixing. It is ultra portable for carrying to the gig and can be used for recording live or in the studio. It comes with configurable USB audio in/out making it easy to capture stereo recordings. Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards. Equipped with professional XLR stereo outputs and a flexible monitoring section with headphone and speaker feed outputs.

USB Audio Flexibility
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy. No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it. CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations.

Send Options
The Main Mix Left + Right (Post master Level), Aux + FX bus (Aux is a pre-fade send, FX is a post-fade send) and Record Bus Left + Right (Separate stereo bus to Main Mix)

Return Options
To Playback input (through jack socket break contacts) and to Stereo 2 channel (through jack socket break contacts)

MusiQ
ZED-10 features a responsive 3-band, swept mid frequency EQ design which utilizes MusiQ - with optimized slope (or Q factor) for equalizing individual instruments.

Guitar DI
ZED-10's pre-amps are similar in design to MixWizard range of mixers, but with a twist! Inputs 3 & 4 have a high impedance jack input capable of taking either a normal line level or a low level input from a guitar pickup. These newly designed inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage. There is a gain "Boost" switch associated with the guitar inputs which boosts gain by 26dB to cater for instruments with very low level outputs and the overdrive characteristics of the guitar inputs are very similar to a valve (tube) circuit, being asymmetric and soft. All this makes for a wonderfully natural sound to be reproduced from the instrument, full of warmth and character.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Allen & Heath ZED-10: Achieve pristine sound quality with low-noise circuitry for clear audio.
  • Four mic/line inputs on this miniature mixer offer flexible connectivity for various instruments.
  • Craft your perfect mix with precise EQ control, enhancing every input channel's sonic texture.
  • The built-in USB interface allows seamless recording and playback at up to 48kHz sample rate.
  • This durable recording mixer is perfect for home studios, podcasts, and small live performances.
  • Utilize class A preamps for warm, musical tones, ideal for guitars, vocals, and more.

What's in the box:

  • Allen & Heath ZED-10 Multi-Purpose Miniature Mixer
  • Mains Lead
  • User Guide
  • Allen & Heath 1 Year Limited Warranty
