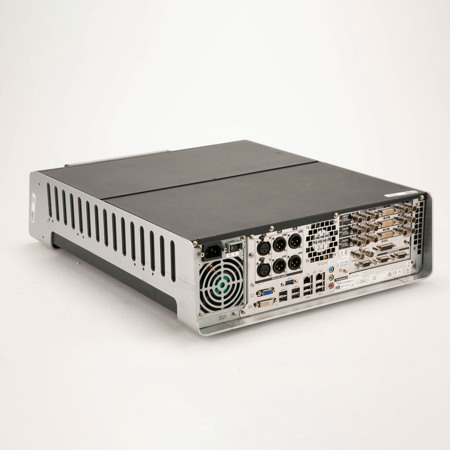

Used Grass Valley T2 Express iDDR, 1 SD/HD Input, 2 SD/HD Outputs, 1TB (RAID-0, 500GB HDD x2) Storage Capacity

SKU: US1683719

This item is no longer available.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Grass Valley T2 Specifications

  • Ingest management

    MXF XDCAM format support with closed caption data
    Direct ingest to external media/storage
    User-defined clip names
    Scheduler

  • Applications

    Events and staging
    Auditoriums
    Corporate A/V centers
    Educational facilities
    Broadcast display support
    Regional sports companies
    Switcher support for playback

  • File-based operation enhancements

    FTP transfer rate limit to maintain playback performance
    NTP Synchronization
    Watch folder transfers

  • Video Input: Format Support Types

    High-definition, standard-definition

  • Video Input: Connections

    SD/HD SDI, analog component (Y-Pb-Pr), DVI-D, composite

  • Video Input: Recording Format

    AVI-Grass Valley HQ, 4:2:2, XDCAM HD422, HD, IMX, DVCAM
    Beginning with SP1, T2 can record directly in XDCAM format

  • Video Input: Bit Rate

    Up to 200 Mb/s

  • Video Input: Resolutions SD/Frame Rate

    720x576i50, 720x486i59.94

  • Video Input: Resolutions HD/Frame Rate

    1920x1080i59.94, 1920x1080i50, 1920x1080p24, 1920x1080PsF24, 1920x1080p23.98, 1920x1080PsF23.98, 1440x1080i59.94, 1440x1080i50, 1440x1080p24, 1440x1080PsF24, 1440x1080p23.98, 1440x1080PsF23.98, 1280x720p59.94, 1280x720p50

  • Video Outputs: Format Support Types

    High-definition, standard-definition, computer

  • Video Outputs: Connections

    SD/HD SDI (one for each playback channel), analog component, DVI-D (one for each playback channel, except RGB), composite

  • Video Outputs: Playback Format

    AVCHD - H.264/AVC
    AVI - Grass Valley HQ
    GF - HD I-Frame only (100 Mb/s), HD Long GOP (50 Mb/s), DVCPRO 50, DVCPRO 25, DV, MPEG-2
    MXF - Grass Valley HQ, AVC-Intra 100, AVC-Intra 50, DVCPRO HD, DVCPRO 50, DVCPRO 25, DV, D10, MPEG-2
    P2 - AVC-Intra 100, AVC-Intra 50, DVCPRO HD, DVCPRO 50, DVCPRO 25, DV
    XDCAM - HD422, HD (35 Mb/s), HD (25 Mb/s and 18 Mb/s), IMX, DVCAM
    XDCAM EX - HD (35 Mb/s), HD (25 Mb/s), DVCAM (Native Import/Playback)

  • Video Outputs: Bit Rate

    Up to 200 Mb/s per channel

  • Video Outputs: Resolutions SD/Frame Rate

    720x576i50, 720x486i59.94

  • Video Outputs: Resolutions HD/Frame Rate

    1920x1080i59.94, 1920x1080i50, 1920x1080p24, 1920x1080PsF24, 1920x1080p23.98, 1920x1080PsF23.98, 1280x720p59.94, 1280x720p50, 1280x720p23.98

  • Video Outputs: Computer Resolutions

    1280x1024, 1024x768, 800x600, 640x480

  • Audio Input: Analog Audio

    2 channels, XLR connections

  • Audio Input: Digital

    AES/EBU (2 channels), BNC connections
    Embedded audio on SDI, HD, or SD (8 channels)

  • Audio Input: Recording Format

    24-bit, PCM, 48 kHz sampling (20-bit PCM for SD-SDI)

  • Audio Output: Analog Audio

    2 channels per output video, XLR connections

  • Audio Output: Digital

    AES/EBU (2 channels), BNC connections
    Embedded audio on SDI, HD, or SD (8 channels)

  • Audio Output: Recording Format

    24-bit, PCM, 48 kHz sampling (20-bit PCM for SD-SDI)

  • Import File Compatibility

    Grass Valley HQ

  • Export File Compatibility

    Grass Valley HQ, MXF (XDCAM format)

  • Transcode Import 1

    AVCHD - H.264/AVC
    AVI - Grass Valley Lossless, Grass Valley HQX, DVCPRO HD, DVCPRO 50, DVCPRO 25, DV, uncompressed
    GF - DVCPRO 50, DVCPRO 25, DV, MPEG-2
    GXF (AVC-Intra 100, AVC-Intra 50, D10, DVCPRO HD, DVCPRO 50, DVCPRO 25, DV, MPEG-2)
    MPEG-2
    MXF - Grass Valley HQX, Grass Valley HQ, AVC-Intra 100, AVC-Intra 50, D10, DVCPRO HD, DVCPRO 50, DVCPRO 25, DV, JPEG 2000, MPEG-2
    P2 - AVC-Intra 100, AVC-Intra 50, DVCPRO HD, DVCPRO 50, DVCPRO 25, DV

  • Transcode Import 2

    QuickTime - Grass Valley HQ, Grass Valley HQX, ProRes 422, ProRes 4444, Canon EOS movie (H.264/AVC), DVCPRO HD, DV, JPEG 2000, animation, MPEG-4, Photo JPEG, PNG, uncompressed
    Sequenced files - TGA,BMP, JPG, TIFF, PNG, GIF
    Windows Media - Windows Media Video
    XDCAM - HD, IMX, DVCAM
    XDCAM EX - HD, DVCAM (transcoding to Grass Valley HQ AVI)

  • Control

    Protocol: BVW (pre-roll/post-roll, variable control in sync mode, audio monitoring with variable speed), GPI, AMP (Advanced Media Protocol) for Indigo A/V Mixer and external control software
    Connections: RS-422 (9-pin D Conn per channel), Ethernet

  • Technology

    Connections: Gigabit Ethernet, USB 2.0, VGA, DVI-D
    Bit Rate: Up to 200 Mb/s per channel

  • Storage Capacity

    1 TB (RAID-0, 500 GB HDD x2), Approx. 14 hours of HD at Grass Valley HQ (150 Mb/s)

  • Operating Temperature

    5deg.C to 35deg.C (41deg.F to 95deg.F)

  • Dimensions

    550 x 430 x 140 mm (21.6 x 16.9 x 5.5")

  • Weight

    15 kg (33 lbs)

Related Articles & Videos

Revive Dead Lenses, Extend The Reach Of Your MILCs With Lens-Camera Adapters

Revive Dead Lenses, Extend The Reach Of Your MILCs With Lens-Camera Adapters

There are nearly 200 adapters that let you mount lenses on interchangeable-lens cameras they weren't designed for.
Read more

About Grass Valley T2 Express iDDR, 1 SD/HD Input, 2 SD/HD Outputs, 1TB RAID-0

Grass Valley T2 Express iDDR advanced nonlinear production features, combine with time tested, VTR-like controls, give you the ultimate in versatility and flexibility. T2 supports a variety of SD and HD formats and effortlessly integrates into your IT environment. Not only will you have exceptional picture quality, you'll increase efficiencies to help you get your quality content out the door or on the screen.

Grass Valley T2 Express iDDR, 1 SD/HD Input, 2 SD/HD Outputs, 1TB RAID-0 Features

  • True HD support - 720p, 1080i and 1080p
  • Up/downconversion for a wider range of resolutions and application support
  • Native import/playback for most standard formats (see list below)
  • Multiformat support (transcoding to Grass Valley HQ AVI) for most standard and broadcast formats (see list below)
  • Three decks for the price of one - 1 record and 2 playback channels work independently and simultaneously
  • 2-channel synchronized playback for key/fill rolls, edge blend displays, multi-screen and 3D applications
  • Embedded audio (8 channels per SDI connection)
  • AES/EBU audio supported
  • Easy-to-use front panel interface
  • Workstation mode included as standard
  • Simple on-the-fly editing, including trimming, mark in/out, basic transition effects and insertion of placeholders for playlists
  • New, robust design - engineered to withstand punishing live event and mobile production environments
  • Integration support for third-party control (BVW, GPIO and AMP)
  • Easily integrate: T2 connects to all professional AV equipment, so you can integrate into any environment, without sacrificing the level of recording and playback quality you need. Plus, its compact footprint optimizes limited space
  • Increase efficiencies: Because T2 has two playback channels and one record channel, you'll ingest, edit, playout and monitor all at once, maximizing production time
  • Increase ease-of-use: With T2, you'll manage production with the traditional functionality you need, while benefiting from state-of-the-art, user-friendly capabilities, including a high-resolution touchscreen display and control panels
  • Import from Final Cut Pro in QuickTime format using the free Grass Valley HQ codec for Mac onto an exFAT HDD
  • Fast playlist rendering speed (up to 10 times real-time)
  • Supports HD to HD real-time cross conversion

What's in the box:

  • Grass Valley T2 Express iDDR
  • Item Note: Item Makes a Loud Sound When It Is On; SSD Drive Bay Have Been Modified; Jog/Shuttle Wheel Button is Missing; 1x Control Buttons Missing (Record). Cosmetic Condition is G.
