Shure SLXD15/85 + SLXD3 Specifications

General

General

Jump to...
  • RF Frequency Band

    J52: 558-616MHz

SLXD1 Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1 Transmitter: Power

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD1 Transmitter: Physical

Jump to...
  • Housing

    PC/ABS

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

Microphone: General

Jump to...
  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Polar Pattern

    Cardioid

  • Pad

    No

  • High-Pass Filter

    No

Microphone: Performance

Jump to...
  • Frequency Range

    50 Hz to 17 kHz

  • Maximum SPL

    130.5 dB SPL

  • Sensitivity

    -45.5 dBV/Pa

  • Dynamic Range

    102.5 dB

Microphone: Connectivity

Jump to...
  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female

  • Cable Length

    4' (1.22m)

Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    1.5 to 10 V

Microphone: Physical

Jump to...
  • Color

    Black

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • UPC Code

    192223243385

33 Accessories for Shure SLXD15/85 Portable Digital Wireless Microphone System with WL185 Lavalier Microphone and SLXD3 Plug-On Transmitter, J52: 558-616MHz

  • All Accessories (33)
  • Lavalier Microphone (4)
  • Bags & Cases (1)
  • Straps & Slings (1)
  • Batteries & Power Supply (13)
  • Cables & Adapters (5)
  • Headphones (3)
  • Headsets (2)
  • Microphones (2)
  • Cleaning Accessories (1)
  • Transmitter (1)

About Shure SLXD15/85 + SLXD3

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

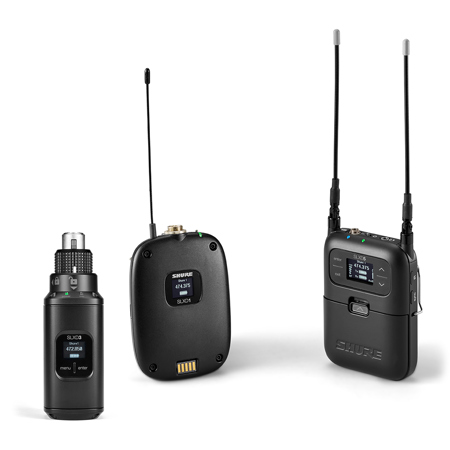

Why settle for less when you can experience superior audio quality with the SLXD15/85 Portable Digital Wireless Microphone System This comprehensive system includes the SLXD1 Digital Wireless Bodypack Transmitter, the SLXD5 Single-Channel Portable Digital Wireless Receiver, and the WL185 Cardioid Condenser Lavalier Microphone.

The SLXD1 Digital Wireless Bodypack Transmitter is a marvel of industry-leading digital wireless technology. It delivers transparent, 24-bit digital audio and robust RF performance, ensuring clear sound transmission even in challenging environments. With an extended frequency range from 20 Hz to 20 kHz, it captures every nuance of sound, making it an ideal choice for a wide range of applications, from professional conferences to live performances. The digital predictive switching diversity and 44 MHz tuning bandwidth offer reliable connectivity and superior sound quality.

The SLXD5 Single-Channel Portable Digital Wireless Receiver is a compact powerhouse, designed for on-camera cold shoe mounting and audio bag use. It offers pristine 24-bit digital audio clarity and efficient long-range UHF transmission. The bright OLED display screen provides key system function readouts and remaining battery life, ensuring you're always in control. The receiver also features dual 1/8" outputs, including a headphone monitor out and switchable line/mic output, providing flexible connectivity options.

The WL185 Cardioid Condenser Lavalier Microphone is a subminiature microphone designed for general sound reinforcement applications. Its cardioid pickup pattern effectively minimizes off-axis ambient noise, ensuring clear and focused sound. The low-profile design makes it easy to conceal, making it perfect for video, broadcast, stage, and sound reinforcement applications.

In summary, the SLXD15/85 Portable Digital Wireless Microphone System offers a comprehensive solution for your audio needs, combining advanced technology, versatile design, and superior sound quality. Whether you're hosting a conference or performing on stage, this system ensures your sound is heard clearly and accurately.

Shure SLXD15/85 + SLXD3 Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Includes SLXD1 Wireless Bodypack Transmitter, SLXD5 Wireless Receiver & WL185 Lavalier Mic

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • High-quality SLXD15/85 Portable Digital Wireless Microphone System for superior audio performance
  • SLXD1 Digital Wireless Bodypack Transmitter with 24-bit digital audio and robust RF performance
  • WL185 Cardioid Condenser Lavalier Microphone with cardioid pickup pattern for clear sound
  • Versatile system ideal for a wide range of applications, from conferences to live performances

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • WL185 Cardioid Condenser Lavalier Microphone
  • SLXD3 Digital Wireless Plug-On Transmitter
  • 4x AA Alkaline Batteries
  • Cold Shoe Mount Adapter
  • Zippered Carrying Pouch
  • Clothing Clip
  • Windscreen
  • Shure 2 Year Limited Warranty
