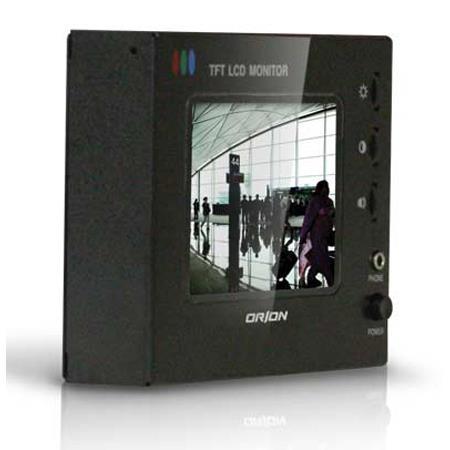

Orion Images TM4 4" Mobile/Test LCD Monitor
See all Orion Images items

Orion Images TM4 4" Mobile/Test LCD Monitor, 480x234

SKU: ORTM4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Orion Images TM4 Specifications

  • Screen Size

    4"

  • Max. Resolution

    480 x 234 pixel

  • Active Area

    82.1(W) x 61.8(H) mm

  • Pixel Pitch

    0.17 x 0.26mm

  • Brightness

    250cd/square meter

  • Contrast Ratio

    150 : 1

  • Pixel Type

    Color TFT LCD

  • Viewing Angle (H/V)

    90 / 90 deg.

  • Display Color

    Full Color

  • Video System

    NTSC / PAL

  • Input Interface

    2x Video Input (RCA Type)
    1x Video Output (RCA Type)
    1x Audio Input (RCA Type)
    1x Audio Output (Jack Type)

  • Power Saving

    Low Power Consumption
    Battery ON / OFF Switch

  • Image Reverse

    Left & Right Reverse Image

  • Material

    Metal

  • Power Consumption: < On

    Max. 5W

  • Electrical Ratings

    AC110 - 220V to 12V DC power supply
    DC12V / 340mA

  • Working Function

    Hanging or waist
    Incline supporter

  • Dimensions (W x H x D)

    Outline: 5.47 x 4.52 x 1.41" / 13.89 x 11.48 x 3.58cm

  • Weight

    1.5lbs / 0.68kg

About Orion Images TM4

ORION Images is a true manufacturer of LCD CCTV monitors. The Orion monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Their monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

The ORION LCD Test monitors are ideal for troubleshooting during system set up. Identify problems as they happen, see real time data on your screen regarding performance and configuration during installation.

Orion Images TM4 Features

  • 480 x 234 Resolution, 250 Nits, 150 : 1 Contrast Ratio
  • Left and Right Reverse Image
  • 2 Video In (RCA Type), 1 Video Out (RCA), 1 Audio In & Out (Jack Type)
  • RCA to BNC Adapter
  • Power Saving Batter ON / OFF Switch
  • AC Adapter, Rechargeable Battery and Charger
  • Protective Case, Neck Strap and Wrist Holder

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • RCA to BNC Adapter

What's in the box:

  • Orion Images TM4 4 " Mobile/Test LCD Monitor
  • Rechargeable Battery
  • Carry Bag
  • Adapter
  • Power Cord
  • Carry Belt
  • Waist Belt
  • 3x RCA to BNC Connector
  • Orion Images 18 Month Parts and Labor Warranty
