MOTU HDX-SDI SDI, HDMI Analog Video Interface with Laptops Express Card
See all MOTU items

MOTU HDX-SDI SDI/HDMI/Analog Video Interface with Laptops Express Card for Laptops

SKU: MTHDXSDINB

This item is no longer available.

Recommended Alternatives

MOTU Digital Performer 10: Picture 1 regular
MOTU Digital Performer 10 Audio Workstation Software with MIDI Sequencing
$795.00$499.00
MOTU Digital Performer 10: Picture 1 regular
MOTU Digital Performer 10 Audio Workstation Software w/MIDI Sequencing, Academic
$395.00
MOTU Digital Performer 10: Picture 1 regular
MOTU Digital Performer 10 Audio Workstation Software w/MIDI Sequencing, Upgrade
$395.00
MOTU Digital Performer 10: Picture 1 regular
MOTU Digital Performer 10 Audio Workstation Software, Lab Pack (5 Seats)
$1,475.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

MOTU HDX-SDI SDI, HDMI Analog Video Interface with Laptops Express Card Specifications

  • System Requirements (1)

    Available PCI-Express slot or ExpressCard/34 slot
    Large hard disk drive (preferably at least 500 GB)
    CD-ROM disc drive for installation
    For Mac OS X:
    Multi-processor or multi-core Intel Mac
    1 GB of RAM; 2 GB or more is recommended
    Mac OS X version 10.5 or 10.6; v10.5.7 or later required
    For use with Final Cut Pro 6.0.5 or later; Final Cut Pro 7.0 or later is recommended on Mac OS X v10.6

  • System Requirements (2)

    For Windows:
    Intel Core 2 Duo, AMD Phenom II, or equivalent 64-bit processor; multiple processors or multi-core processor required
    2 GB of RAM; 4 GB or more is recommended
    Windows 7 or Vista, 64-bit versions only; Vista SP1 or later required
    For use with Adobe Premiere Pro CS5 or CS5.5; version 5.0.3 or later required

  • Rack Height

    With rack ears attached, fits standard 19" (48.26cm) rack with 1U of rack height

  • Knobs & Connectors Extended

    Up to 0.50" (1.27cm) from front and back panels, Adding 1.00" (2.54cm) to depth

  • Dimensions (H x W x D)

    Chassis Excluding rack ears and front and back panel knobs and connectors: 19.00 x 7.00 x 1.75" (48.26 x 17.78 x 4.44cm)

  • UPC Code

    839128005679

About MOTU HDX-SDI SDI, HDMI Analog Video Interface with Laptops Express Card

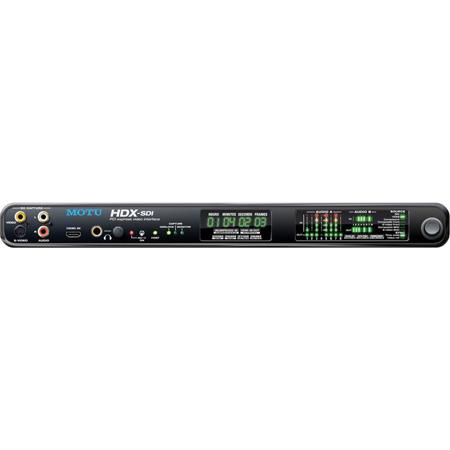

The MOTU HDX-SDI SDI/HDMI/Analog Video Interface with PCI Express Card is a comprehensive video capture and monitoring system that supports a wide variety of professional workflows. The unit features Mac and PC drivers, both 32 and 64 bit and is compatible with Final Cut and Media Composer on the Mac and with Premiere on a PC.

Connect the system to virtually any source: from standard definition camcorders to fully professional digital cinema cameras, logging and capturing clips is quick and easy, saving both time and headaches. Unmatched image quality can be achieved by recording to uncompressed 4:2:2 over HD-SDI; 10-bit color depth and full raster 1920 x 1080 is at your fingertips, all in real time.

By using codecs that are directly supported and native to non-linear editing systems, the need to spend costly time transcoding footage is eliminated. Users can capture up to (16) channels of audio, in both analog (XLR) and digital (AES/EBU) with sample rates up to 96 kHz. Additional features include RS-232C support and frame-accurate time code management. This model comes equipped with a PCI Express card for integration with today's multi-core Mac and PC desktops.

MOTU HDX-SDI SDI, HDMI Analog Video Interface with Laptops Express Card Features

  • HD/SD ExpressCard video interface for Mac and PC provides HD and SD capture and playback for any current-generation ExpressCard-equipped computer
  • Connects to a Mac or PC laptop via ExpressCard connectivity for mobile operation
  • Comprehensive video capture & monitoring supports all standard SD and HD video formats up to and including 1080p30 (720p, 1080i, 1080p & 1080PsF)
  • Captures and plays uncompressed HD and SD 10-bit 4:2:2 color depth and 1920 x 1080 resolution
  • Capture and monitor full-raster (1920 x 1080 or 1280 x 720) Apple ProRes, ProRes HQ, or other popular host-based codecs supported by Apple Final Cut Pro and Adobe Premiere Pro
  • Support for file-based workflows lets you capture, edit and monitor in any codec supported natively in Final Cut or Premiere, with no transcoding needed
  • Broadcast quality 10-bit 4:2:2 signal path throughout
  • ASC CDL color grading provides flexible, industry-standard color adjustment with separate settings for capture and playback
  • HDMI capture and monitoring provides both HDMI in and out
  • Advanced sync features include time code, large front panel time code display, video ref input and 9-pin machine control
  • Capture or monitor up to 16 channels of audio via any two 8-channel banks of TRS analog, AES/EBU digital, or embedded (SDI or HDMI) at sample rates up to 96kHz
  • Offers professional rackmount operation, or remove the rack-mount brackets for convenient desktop use
  • International operation is made possible with an auto-switching internal power supply with powersave mode

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Captures and plays uncompressed HD and SD 10-bit 4
  • Broadcast quality 10-bit 4

What's in the box:

  • MOTU HDX-SDI SDI & HDMI Analog Video Interface with Laptops Express Card
  • ExpressCard Adapter
  • MOTU 2 Year Limited Warranty
