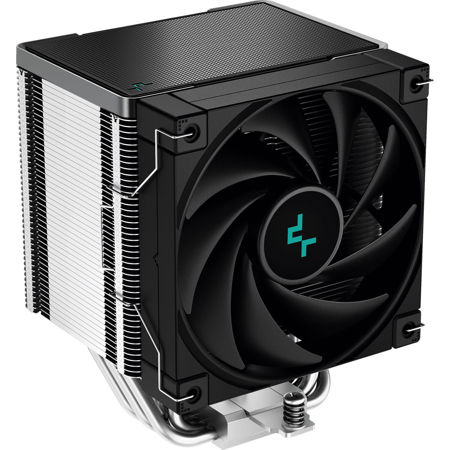

DeepCool AK500 120mm Single-Tower Performance CPU Cooler

SKU: DCAK5

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the DeepCool AK500 CPU cooler be installed in any case orientation?

Yes, the AK500's Balanced Bidirectional Heat Pipe Technology ensures optimal performance whether the cooler is installed in a vertical or horizontal case orientation.

Is the DeepCool AK500 compatible with both Intel and AMD processors?

Absolutely, the AK500 comes with an all-metal mounting bracket that is designed to be compatible with both Intel and AMD platforms, ensuring a secure and balanced installation.

Does the DeepCool AK500 support motherboards with quad-channel memory?

Yes, the AK500 is designed with an angled heat pipe configuration that provides ample clearance of 45mm for the rear slots, making it suitable for quad-channel motherboards.

How does the included FK120 fan contribute to the cooler's performance?

The FK120 fan is engineered to deliver high-performance cooling by maximizing airflow and static pressure. It also features an intelligent ramping system to reduce noise levels when full power is not necessary.

Are additional components included for future upgrades to the AK500 cooler?

The AK500 package includes an optional low-speed adapter and extra fan clips, allowing for future cooling upgrades and customization.

Shopper : Why Did You Choose This?Dominick Z : Im upgrading my pc and I needed to find a good fan for my CPU. Saw reviews about this website and I am trusting its real.

Reviews about this item

Review Summary

DeepCool AK500 120mm Single-Tower Performance CPU Cooler Specifications

  • Available Colors

    Black, White, ZERO DARK All Black

  • Application For

    Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
    AMD: AM5/AM4

  • Heatpipe

    6mm x5 pcs

  • Fan Speed

    500-1850 RPM +/- 10%

  • Fan Airflow

    68.99 CFM

  • Fan Air Pressure

    2.19 mmAq

  • Fan Noise

    <=31.5 dB(A)

  • Fan Speed (with LSP)

    500-1550 RPM +/-10%

  • Fan Airflow (with LSP)

    52.24 CFM

  • Fan Air Pressure (with LSP)

    1.2 mmAq

  • Fan Noise (with LSP)

    <=25.9 dB(A)

  • Fan Connector

    4-pin PWM

  • Bearing Type

    Fluid Dynamic Bearing

  • Fan Rated Voltage

    12 VDC

  • Fan Rated Current

    0.12 A

  • Fan Power Consumption

    1.44 W

  • Dimensions (L x W x H)

    5 x 4.60 x 6.22" (127 x 117 x 158mm)
    Heatsink: 5 x 3.54 x 6.22" (127 x 90 x 158mm)
    Fan: 4.72 x 4.72 x 0.98" (120 x 120 x 25mm)

  • Weight

    2.29 lbs (1.04kg)

  • UPC Code

    6933412727965

About DeepCool AK500 120mm Single-Tower Performance CPU Cooler

The DeepCool AK500 is a high-performance single tower CPU cooler that maximizes cooling potential with a large heat sink, five advanced heat pipes, and a highly efficient 120mm FDB fan.

Prime Performance
Keep up with massive performance gains thanks to dominant cooling capacity from the AK500 boasting 240W of heat dissipation power to manage next generation processors. Tackle 4K gaming or high processing workloads knowing that your system is sufficiently cooled and performing at its peak.

Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, our copper heat pipes achieve the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance across a wide TDP range.

Full Dram Compatibility
The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.

Cool, Quiet, and Powerful
Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency. An optional low-speed adapter and extra fan clips are included for upgrades.

Simple and Secure
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

DeepCool AK500 120mm Single-Tower Performance CPU Cooler Features

  • Prime Performance
  • Balanced Bidirectional Heat Pipe Technology
  • Full Dram Compatibility
  • Cool, Quiet, and Powerful

Key Features

  • Prime Performance
  • Balanced Bidirectional Heat Pipe Technology
  • Full Dram Compatibility
  • Cool, Quiet, and Powerful

What's in the box:

  • DeepCool AK500 120mm Single-Tower Performance CPU Cooler
  • Mounting Brackets
  • Mounting Hardware
  • DeepCool 3 Year Limited Warranty
