Hollyland Pyro 7 provides videographers and filmmakers with an innovative solution in terms of camera monitoring. It integrates three functionalities (a receiver, a transmitter, and a monitor), aiming to be an all-in-one device that adapts to users’ needs. The promise of stable transmission, quick switching between monitored devices, and minimum latency is intriguing. Read along to find out how to enhance your video recording and broadcasting workflow and produce high-quality content with the help of a single device.
Key Features of the Hollyland Pyro 7
- All-in-one receiver, transmitter, and monitor
- 7-inch screen with 1,200 nits peak brightness
- Auto Dual-Band Hopping (ADH) technology
- Up to 1,300ft (400m) range with a minimal latency of 0.006s
- Advanced image analysis capabilities due to an upgraded HollyOS system
- SDI & HDMI Loopout
- RTMP Streaming
- Extended mp4 video recording of up to 40 minutes in a single session
- Compatible with Pyro H and Pyro S
What’s New About the Hollyland Pyro 7
The entire concept of Pyro 7 is new for Hollyland. It packs the functionalities of TX, RX, and a monitor in the same device for extended versatility and customization. The main benefit is that the user can connect a transmitter to up to four receivers simultaneously and tackle any challenge that may appear on set during broadcasting. Many other similar functionalities provide convenient on-site monitoring with minimum effort on the user’s part.
Focusing on transmission and image quality, this product aims to create a seamless workflow that allows the creator to fully engage with the artistic process. Here is what you should know.
The Ultimate Broadcast Experience
Thanks to the WiFiBroadcast technology, one transmitter can connect to up to four receivers without compromising signal stability. You can connect the Hollyland Pyro 7 to additional monitors for a full-on broadcasting setup. In addition, with the help of RTMP (Real-Time Messaging Protocol) and the HollyView app, you can stream directly to the most popular broadcasting platforms, such as TikTok Live, Zoom, and YouTube Live.
Add that the device is silent and has no issues with overheating. You have a long-lasting solution for live streaming and broadcasting. The batteries are hot-swappable, so no breaks or delays are caused by changing the batteries either.
Signal Transmission Performance and Efficiency
Hollyland doesn’t compromise on transmission quality. Their latest product supports 2.4GHz & 5GHz dual-band transmission. Furthermore, it features a stable transmission range of up to 1,300ft (400m) and a minimal transmission latency of 60ms.
You can choose between the HD Mode for superior image quality of 8-12Mbps throughout the transmission range and the Smooth Mode for a dynamically adjustable bitrate that achieves the lowest latency for ultra-long-distance transmissions.
Auto Dual-Band Hopping (ADH) Technology
The reliability of the wireless video transmission is guaranteed by the self-developed ADH technology. It features Auto Frequency Hopping, which means it automatically chooses the clearest channel for an uninterrupted wireless video transmission. Dual-band transmission is an efficient solution for minimizing signal interference, low transmission efficiency, and frequency congestion.
In addition, the Hollyland Pyro 7 features omnidirectional high-gain antennas, which also improve transmission performance, ensuring a stable signal in all directions.
Precise Image Analysis
Real-time image analysis is essential for high-quality videos, so Hollyland upgraded the HollyOS system to provide this functionality on their new device. You can seamlessly switch between image analysis functions, such as Waveform, Focus Assist, Zebra Pattern, False Color, 3D LUT, and Image Overlay, and make informed decisions while shooting.
As you can see every detail on the generous-size, bright 7-inch monitor, no error will pass unseen. As a bonus treat, you can adjust the screen’s brightness to fit any environment, from bright sunlight to dim interiors. The monitor has ¼-inch screws on each side and the bottom and allows you to mount it horizontally or vertically to match your shooting position.
Advanced Usability
In terms of usability, the wireless transmitter features one HDMI input, one SDI input, and one HDMI loopout, while the receiver features one SDI output, one HDMI output, and one SDI loopout. This means it can handle any camera model. It also features a USB-C port and a 3.5mm headset port. They are all on the back of the device to keep the cable away from you.
You’ll also appreciate the possibility of up to 40 minutes of video recording on an external SD card, the option to apply a LUT to videos at export, customizable folders for better data organization, the possibility to take on-set screenshots, and the image overlaying functionality.
Two customizable shortcut keys make dual-camera monitoring as simple as pressing a button. You can quickly switch between dual camera views within 1 second without even looking at the buttons because one is smooth and one is indented. Just make sure they both use the same video resolution and mode (HD mode or Smooth mode).
Who Should Buy This Wireless Transceiver?
If you monitor multiple cameras in real-time, frequently change your shooting setup and equipment, and need a general-purpose solution, Hollyland’s new addition to the Pyro family is for you. Customizable buttons allow you to switch between content coming from multiple cameras. The long transmission range allows you all the creative freedom you need.
Overall, the device is a handy tool for small commercial videos, music clips, short movies, live streaming, and broadcasting. It provides professional quality, which makes it ideal for a professional setup without overwhelming the budget, which is good news for independent filmmakers and videographers. Because it features both HDMI and SDI, you can pair it, for example, with a mirrorless camera, such as a Sony Alpha, for personal projects and with a cine camera for commercial projects.

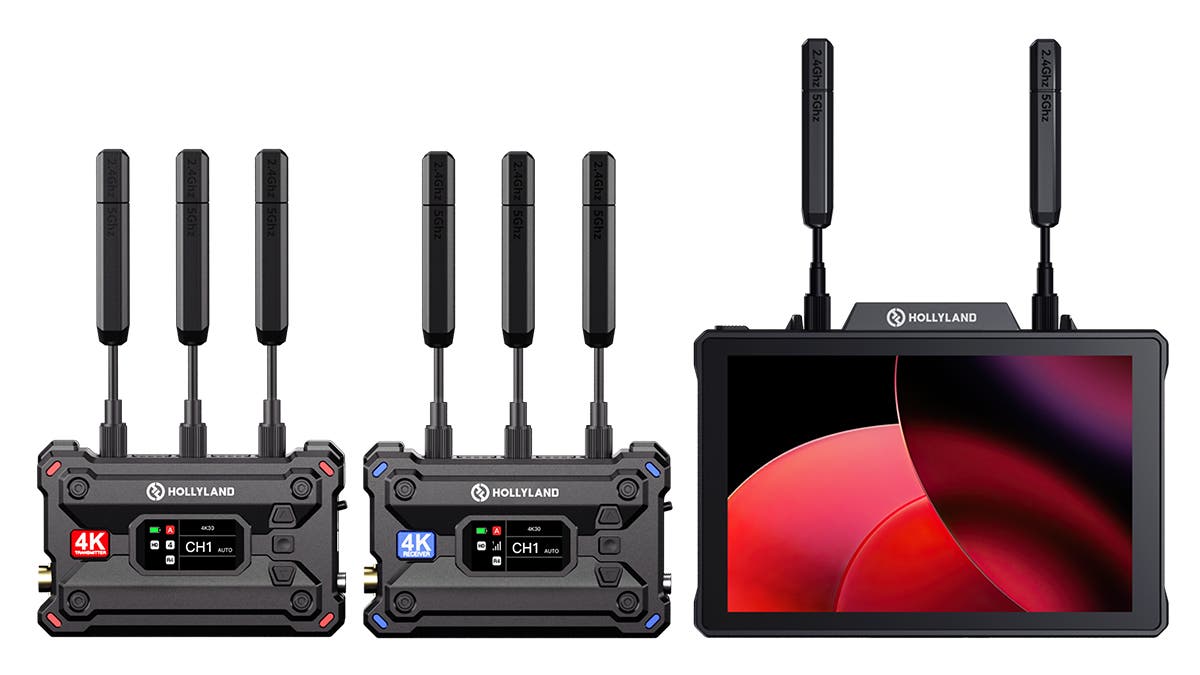

Comparable Products in the Pyro Series
Pyro H and Pyro S are the other two products in the Pyro series. All products in the Pyro series are designed for video transmission and monitoring and aim to improve video footage and the experience of recording it. Furthermore, they all work with each other to provide a complex, multi-camera setup and feature the same impressive 4k/30fps transmission capabilities, stable transmission, low latency, and long transmission distance.
However, Pyro H is an HDMI video transmission system, and Pyro S is an HDMI/SDI video transmission system. Only the Pyro 7 can receive, transmit, and monitor at the same time, support a broad range of cameras, and provide image analysis. But put them to work together (which is not difficult as they are sold as a kit), and all your camera monitoring needs will be met in an instant.
Final Thoughts
The Hollyland Pyro 7 is a welcome addition to the Pyro series because it allows users to create a personalized workflow with minimum pairing effort. The products in the series work smoothly together, providing the flexibility one needs in a commercial or artistic project. Hollyland has put a lot of effort into delivering a flexible device that is easy to use and excels at transmission and image quality. Their self-developed technologies work in the user’s favor, and we can only be curious about what follows.
